Compact size. Epic Sound.

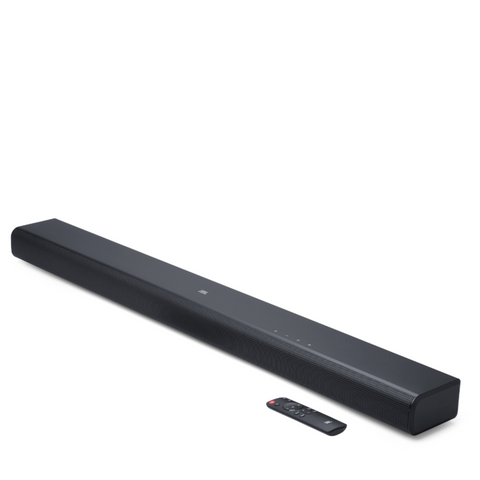

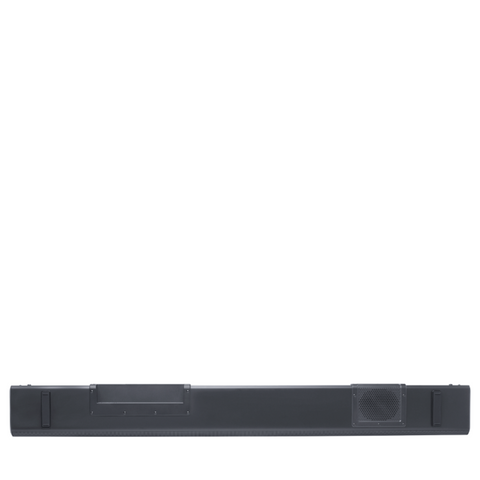

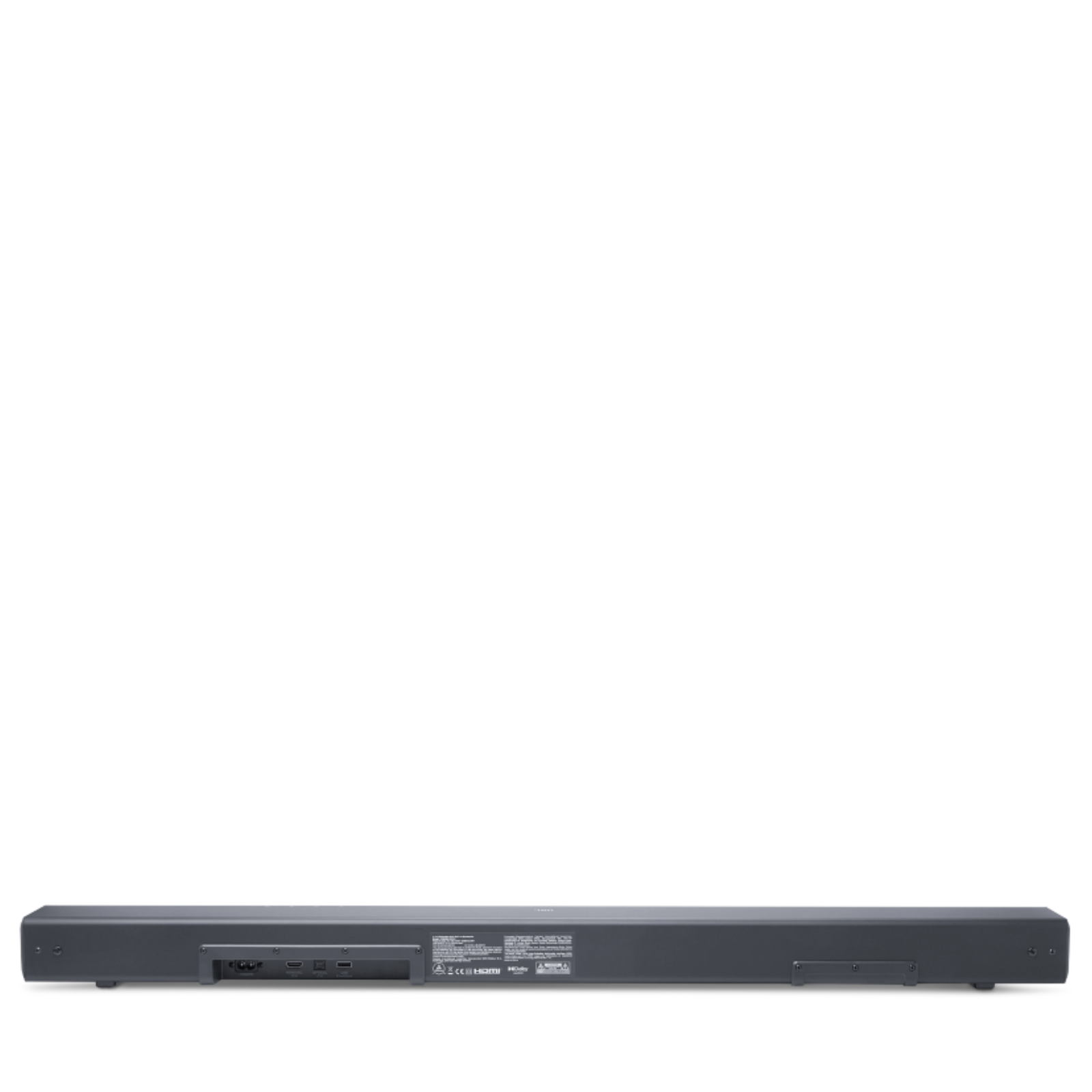

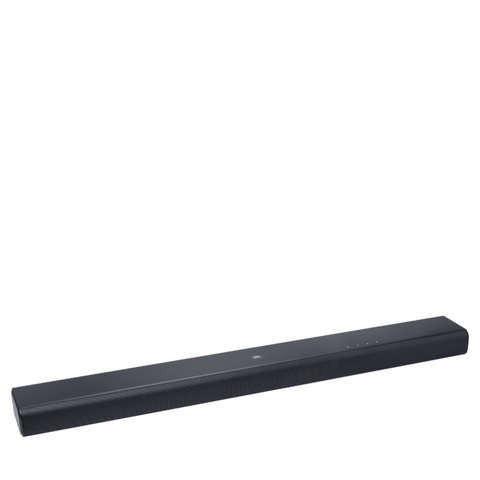

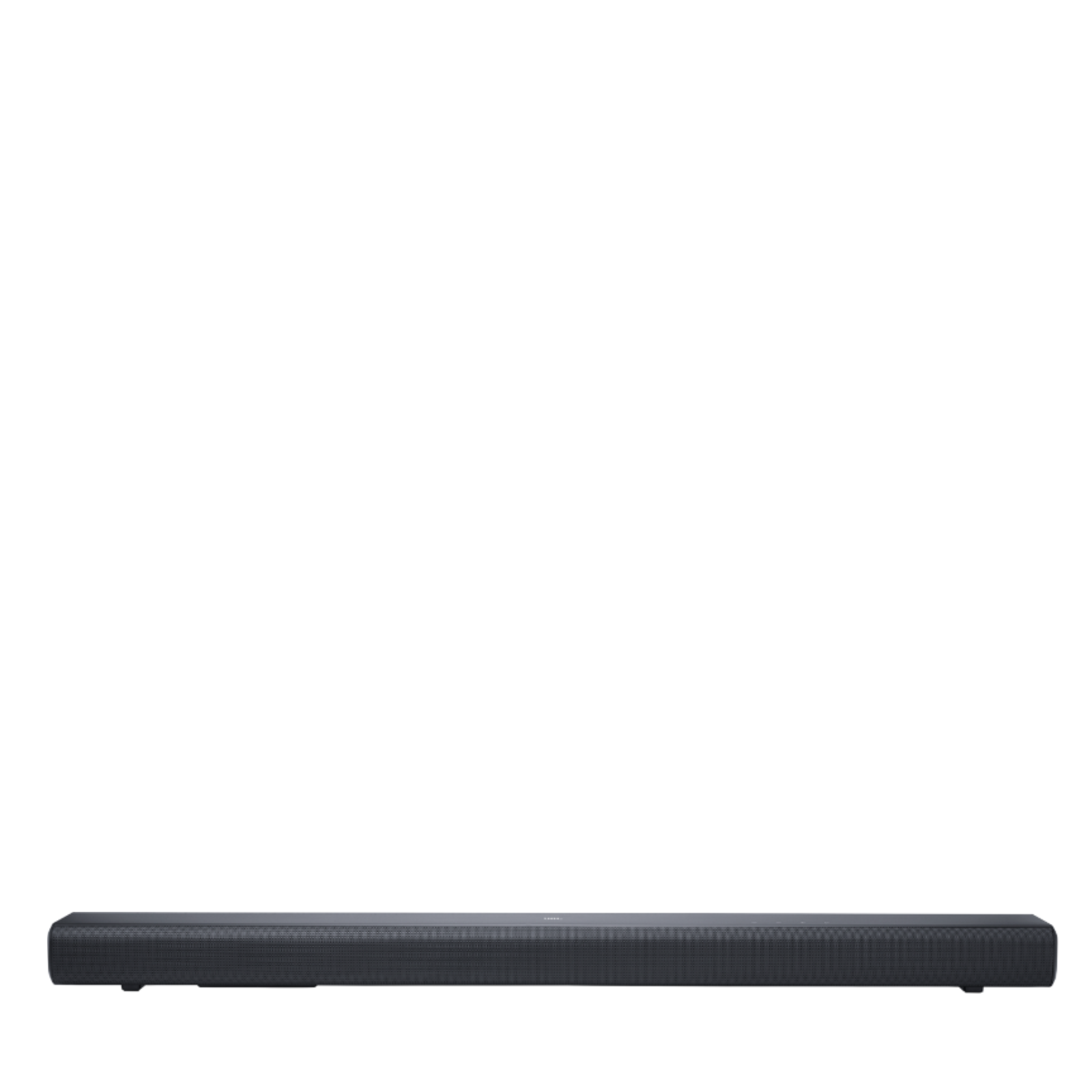

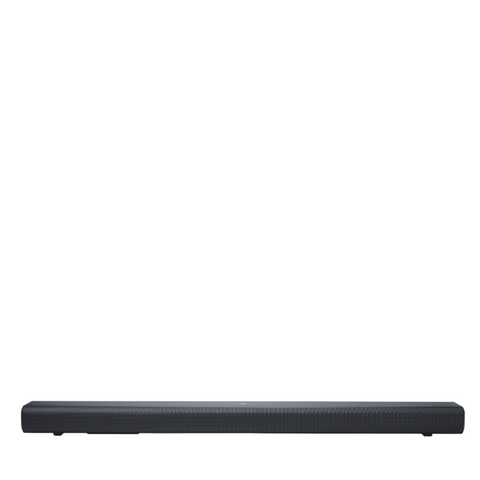

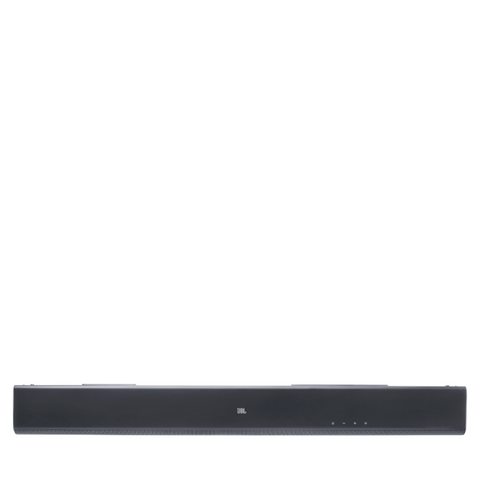

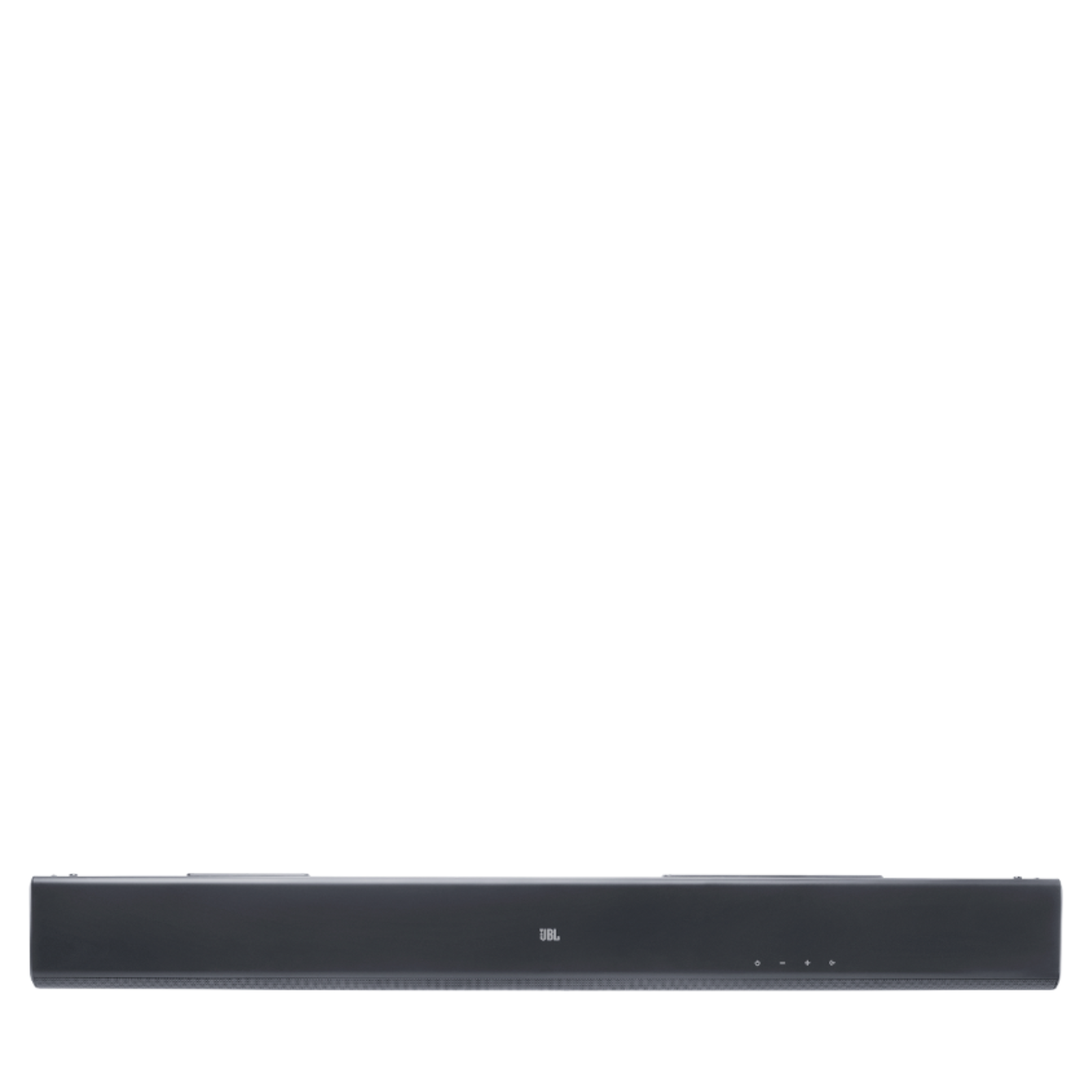

The JBL Cinema SB510 is a 3.1 channel all-in-one soundbar with a builtin subwoofer. It delivers 200 watts of powerful Dolby Audio with deep bass, all in a hassle-free, compact design that fits neatly into any room. A dedicated center channel driver means TV and film dialogue is always crystal clear. Setup is easy using either one cable HDMI ARC or optical connections, and convenient Bluetooth connectivity means you can use it for wireless music streaming from any device
Dedicated center channel provides superior voice clarity
A dedicated center channel delivers film and TV dialogue with amazing clarity. You’ll never ask “What did they just say?” again.
Built-in subwoofer
The built-in subwoofer delivers deep bass without the need for another box or extra cables to clutter up your space.
One cable connection with HDMI ARC
The one cable HDMI ARC connection allows for the simplest setup and a hassle-free user experience. Wireless music streaming via Bluetooth Stream and enjoy all your music wirelessly from any mobile device.
Dolby Audio embedded
Delivers powerful sound that enhances any movie experience.
General Specifications
Model: CINEMA SB510
Sound system: 3.1 channel
Power supply: 100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max @THD 1%): 200W
Soundbar output power (Max @THD 1%): 150W
Subwoofer output power (Max. @THD 1%): 50W
Soundbar transducer: 3x (45 x 80)mm racetrack drivers
Subwoofer transducer: 1x (70 x 88)mm, built-in subwoofer
Standby power: < 0.5W
Operating temperature: 0°C - 45 °C
HDMI Specification
HDMI ARC (Audio Return Channel): 1
HDMI HDCP version: 1.4
Audio Specification
Frequency response: 55Hz-20kHz (-10dB)
Audio inputs: 1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)
USB Specification
USB port: Type A
USB rating: 5V DC, 0.5A
Supporting file formats: mp3
MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate: 16 - 48 kHz
MP3 bitrate: MPEG 1 Layer 1: 32 kbps - 448 kbps; MPEG 1 Layer 2: 32 kbps - 384 kbps; MPEG 1 Layer 3: 32 kbps - 320 kbps; MPEG 2/2.5 Layer 1: 32 kbps -256 kbps; MPEG 2/2.5 Layer 2/3: 8 kbps - 160 kbps
Wireless Specification
Bluetooth version: 5.3
Bluetooth profile: A2DP 1.3, AVRCP 1.6
Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
Bluetooth Max. transmitting power: <10 dBm (EIRP)
Bluetooth modulation: GFSK, π/4 DQPSK, 8DPSK
Dimensions
Soundbar dimensions (W x H x D): 950 x 67 x 105mm / 37.4’’ x 2.6’’ x 4.1’’
Soundbar weight: 3.5kg / 7.7 lbs
Packaging dimensions (W x H x D): 1112 x 116 x 164mm / 43.8’’ x 4.6’’ x 6.5’’
Packaging Weight: 5.0kg / 11.0 lbs

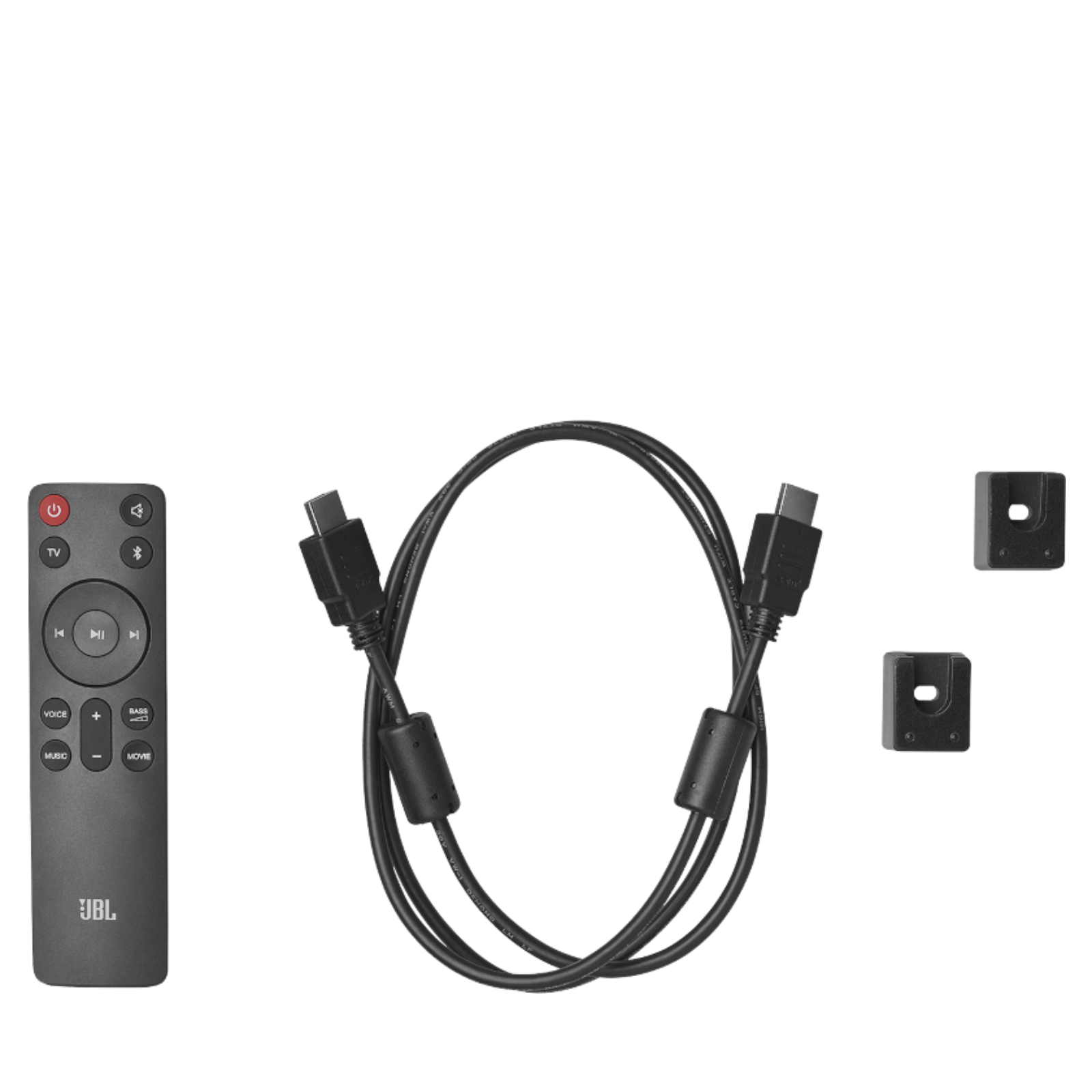

What’s in the Box
Soundbar Remote control with batteries
Power cables (up to 4pcs depending on region SKUs)
HDMI cable
Wall-mount bracket kit with screws
Quick start guide
Warranty card
Safety sheet
