JBL BAR 800 5.1.2-Channel Soundbar with Detachable Surround Speakers and Dolby Atmos®

720W output power

With 720 watts of total output power, the JBL Bar 800 transforms your movies, music and games into immersive sound experiences.

10″ Wireless subwoofer

Bring a new level of excitement and emotion to your movies and music with the JBL Bar 800’s bass-boosting 10″ wireless subwoofer.

PureVoice dialogue enhancement technology

Enhanced with PureVoice technology, the JBL BAR 800 provides optimised voice clarity to ensure that you never miss a word of dialogue even when sound effects are at their peak.

HDMI eARC with 4K Dolby vision passthrough

Enjoy high-quality Dolby Atmos® surround sound through a single HDMI cable thanks to the soundbar’s HDMI eARC connection. The JBL BAR 800’s HDMI input connection also supports 4K video quality from compatible video players or gaming consoles.

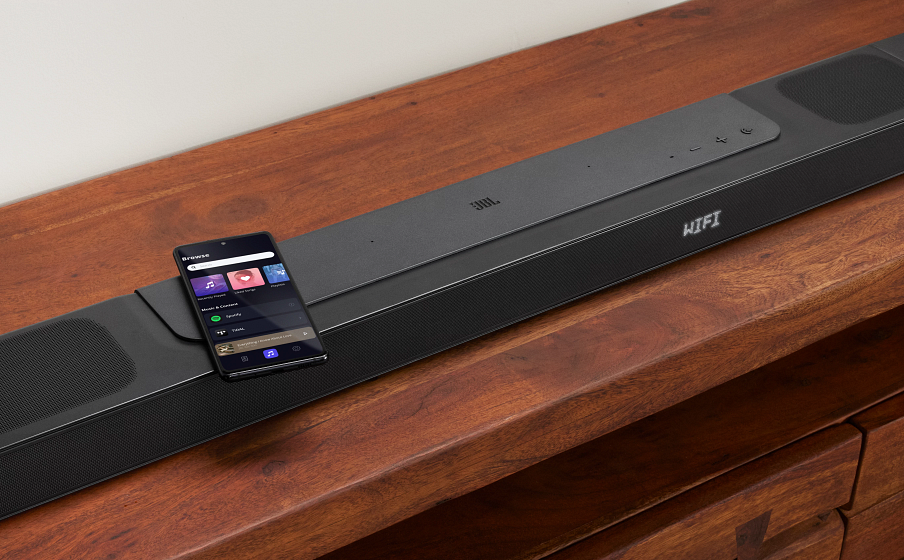

JBL One App

Customise EQ and control the JBL BAR 800’s with the handy JBL One App. With this app, you can also easily set up the soundbar, personalise settings and browse the integrated music services.

Easy sound calibration

Every room is different but the JBL BAR 800’s audio calibration feature ensures that you get the best sound and 3D surround effects without any complex setting up.

Works with voice assistant-enabled devices

Instantly connect your JBL BAR 800 to your voice assistant-enabled device to access Alexa, Google Assistant or Siri.

1 x Main soundbar

2 x Detachable wireless surround speakers

1 x Wireless subwoofer

1 x Remote control with 2 x batteries

1 x Power cords (up to 8pcs depending on region SKUs)

1 x HDMI cable

2 x L-shape wall-mount brackets (main bar) + 2 x U-shape wall-mount brackets (for surround speakers) kit with screws

4 x Side caps

1 x Quick Start guide

1 x Safety instruction and Warranty card

1 x Wall mount template

General specifications

Power supply: 100 - 240V AC, ~ 50/60Hz

Networked standby power: < 2.0W

Operating temperature: 0°C - 45°C

Audio specifications

Total speaker power output (Max @THD 1%): 720W

Soundbar output power (Max @THD 1%): 340W

Surround speaker output power (Max @THD 1%): 2x 40W

Subwoofer output power (Max. @THD 1%): 300 W

Soundbar transducer: 3x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers

Surround speaker transducer: 1x (46x90)mm racetrack driver

Subwoofer transducer: 10” (260mm)

Frequency response: 35Hz - 20kHz (-6dB)

Audio inputs: 1 Optical, Bluetooth, Chromecast Built-in, AirPlay and Alexa MRM, USB (USB playback is available in the US version. For other versions, USB is for Service only.)

Dimensions

Total soundbar dimensions (W x H x D): 1174 x 56 x 120 mm / 46.2" x 2.2" x 4.7"

Main soundbar dimensions (W x H x D): 884 x 56 x 120 mm / 34.8" x 2.2" x 4.7"

Detachable surround speaker dimensions (each) (W x H x D): 145 x 56 x 120 mm / 5.7" x 2.2" x 4.7"

Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm / 12" x 17.3" x 12"

Soundbar weight: 3.4 kg / 7.4 lbs

Detachable surround speaker weight (each): 1.3 kg / 2.8 lbs

Subwoofer weight: 10 kg / 22 lbs

Packaging dimensions (W x H x D): 1000 x 375 x 475 mm/ 39.4" x 14.8" x 18.7"

Packaging Weight: 18.9 kg / 41.6 lbs

Control and connection specifications

USB port: Type A

USB rating: 5V DC, 0.5A

Supporting file format: MP3

MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate: 16 - 48 kHz

MP3 bitrate: 80 - 320 kbps

Bluetooth version: 5.0

Bluetooth profile: A2DP 1.2, AVRCP 1.5

Bluetooth transmitter frequency range: 2400MHz – 2483.5MHz

Bluetooth transmitter power: <15dBm (EIRP)

Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range: 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)

2.4G Wi-Fi transmitter power: < 20dBm (EIRP)

5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power: 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

2.4G wireless transmitter frequency range: 2406 - 2474MH

2.4G wireless transmitter power: ＜10dBm (EIRP）

Battery

Lithium battery: 3.635V, 3283mAh
