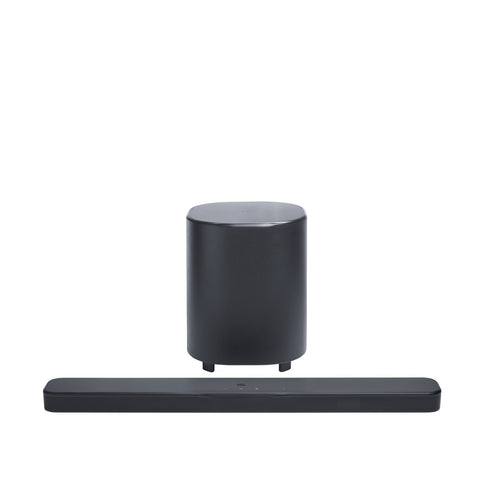

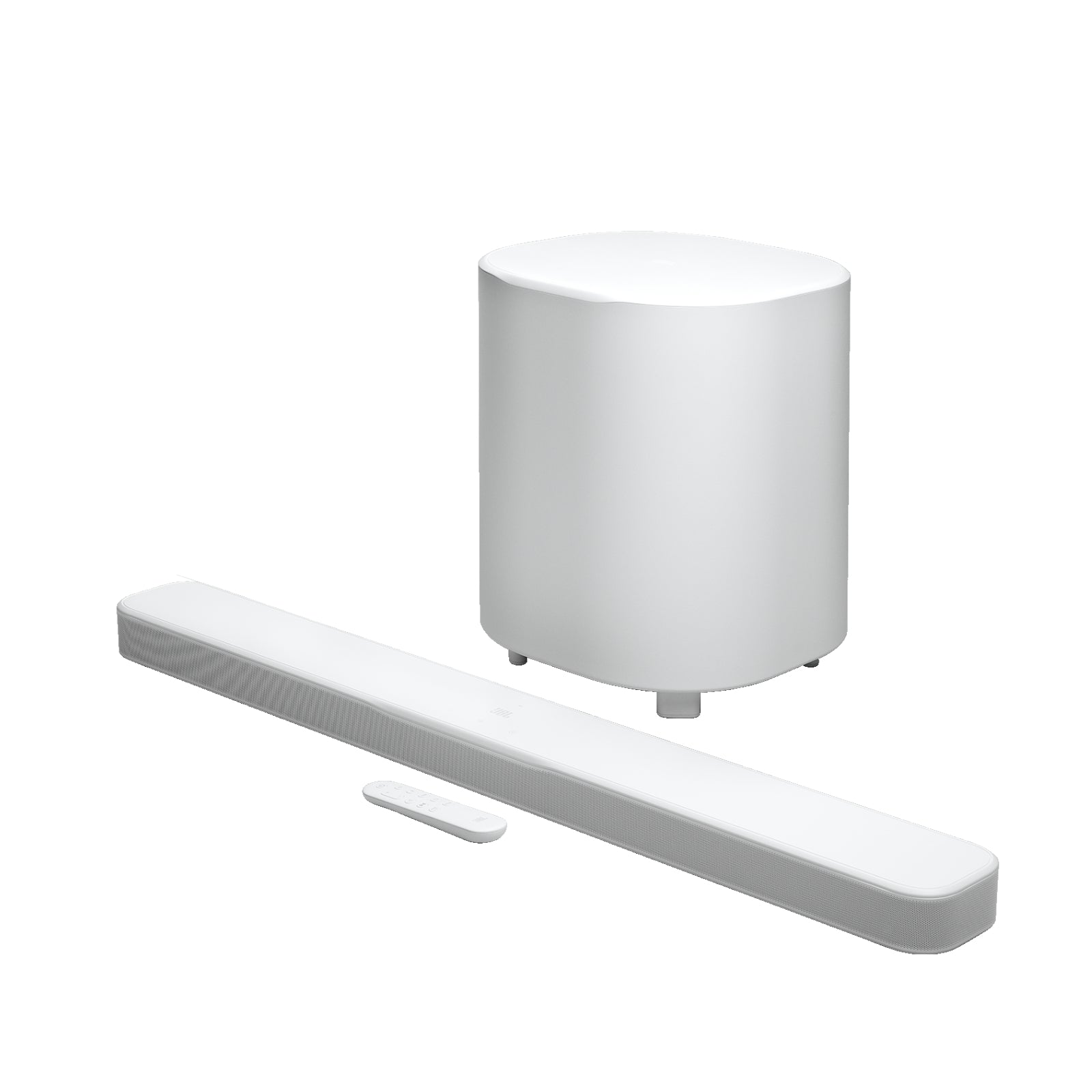

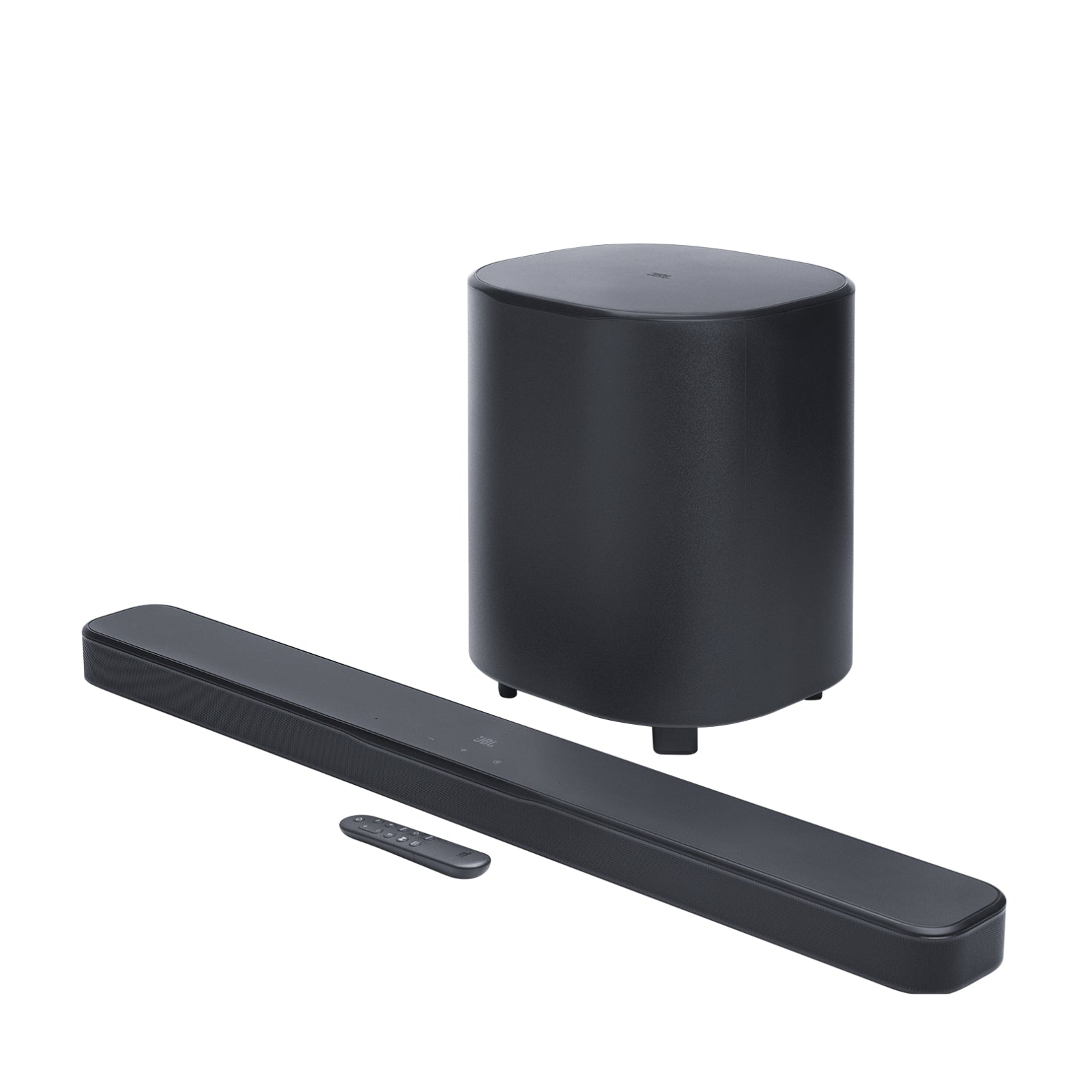

JBL BAR 500 MK2 5.1 channel soundbar system with Dolby Atmos®

750W max output power and a 10” wireless subwoofer

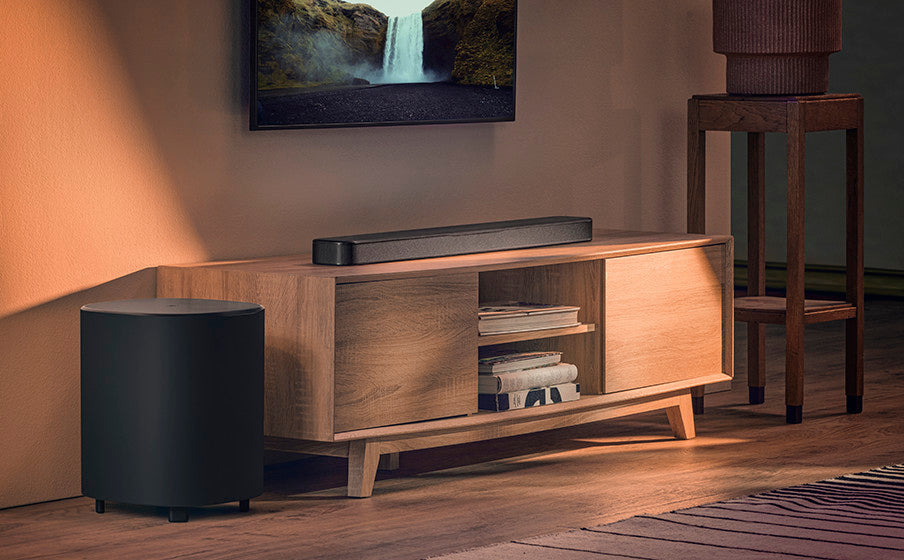

Feel every on-screen crash, bang, and boom right in your chest. Your movies, music, and games become an even more immersive, theater-like sound experience with 750 watts of total system power, including big, thundering bass from the 10” wireless subwoofer.

Dolby Atmos®
Hear a plane soar overhead. Feel a crowd swarming past you. Or get carried away by the energy of your go-to dance playlist. Hear extraordinary cinematic sound from all directions with the 3D audio experience of Dolby Atmos®.

MultiBeam™ 3.0

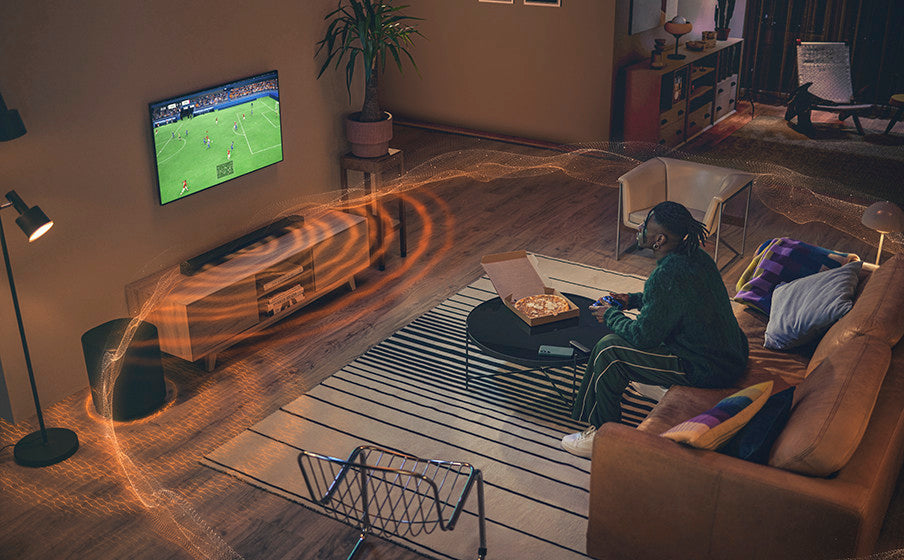

Wherever you’re sitting, you’ll be in the middle of the action. Our MultiBeam™ 3.0 delivers a wide, cinemalike soundstage that makes every high-speed chase or epic fight scene come alive. The sound beams perfectly fill your room, delivering truly immersive, lifelike, and realistic sound reproduction.

PureVoice 2.0

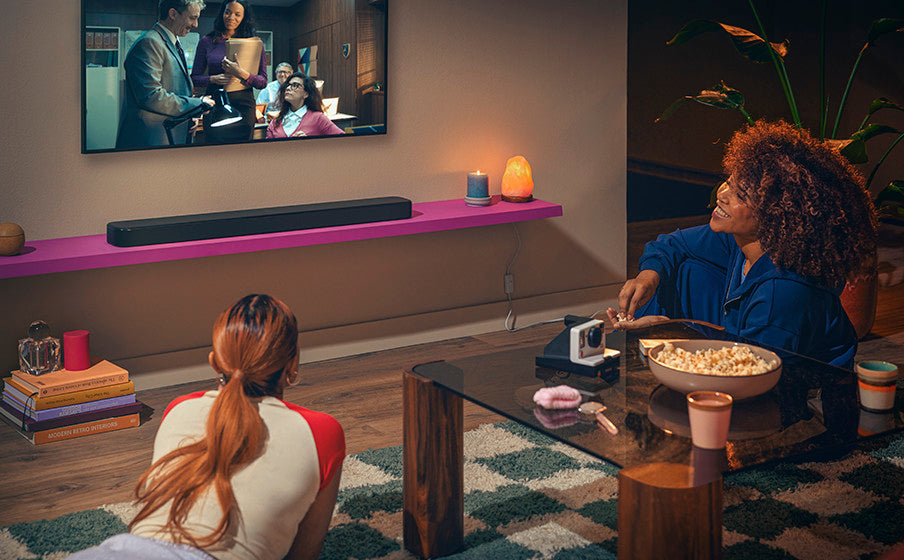

Never miss a softly spoken line or a whispered plot twist. JBL’s own PureVoice 2.0 automatically raises or optimizes the dialogue, based on both ambient sound in the scene and your soundbar’s volume. So you’ll always hear every word, clearly and consistently, in cinema-quality sound.

SmartDetails
Hear all the subtleties in a film’s sound mix, just like you would in the theater. From a creaking door to a faraway shout, experience every detail the way the filmmakers intended in a clear, balanced sound field, thanks to JBL’s own advanced sound enhancement technology.

Easy sound calibration
Every room is different. Your soundbar discovers how sound reflects off your walls and furniture.
So it’ll deliver the best 3D surround effects, tuned specifically for your space and with any TV.

HDMI eARC with 4K Dolby Vision passthrough
No matter what brand your TV is, enjoy uncompressed Dolby Atmos surround sound through a single HDMI cable thanks to the HDMI eARC connection. The HDMI input connection also offers 4K video quality from a compatible video player or gaming console.

JBL ONE App
Set up the soundbar using the JBL ONE app, then make it yours. Customize the sound your way with a precise equalizer, browse your favorite music apps, and get software upgrades for all the latest features, right from your couch.

General Specifications

• Sound system: 5.1 channel
• Power supply: 100 - 240V AC, ~ 50/60Hz
• Total speaker power output* (Max. @THD 1%): 750W

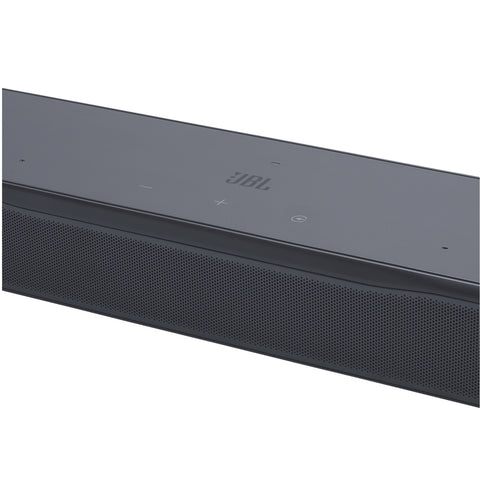

• Soundbar transducer: 5x (42x80)mm racetrack drivers, 4x 0.75” (20mm) tweeters

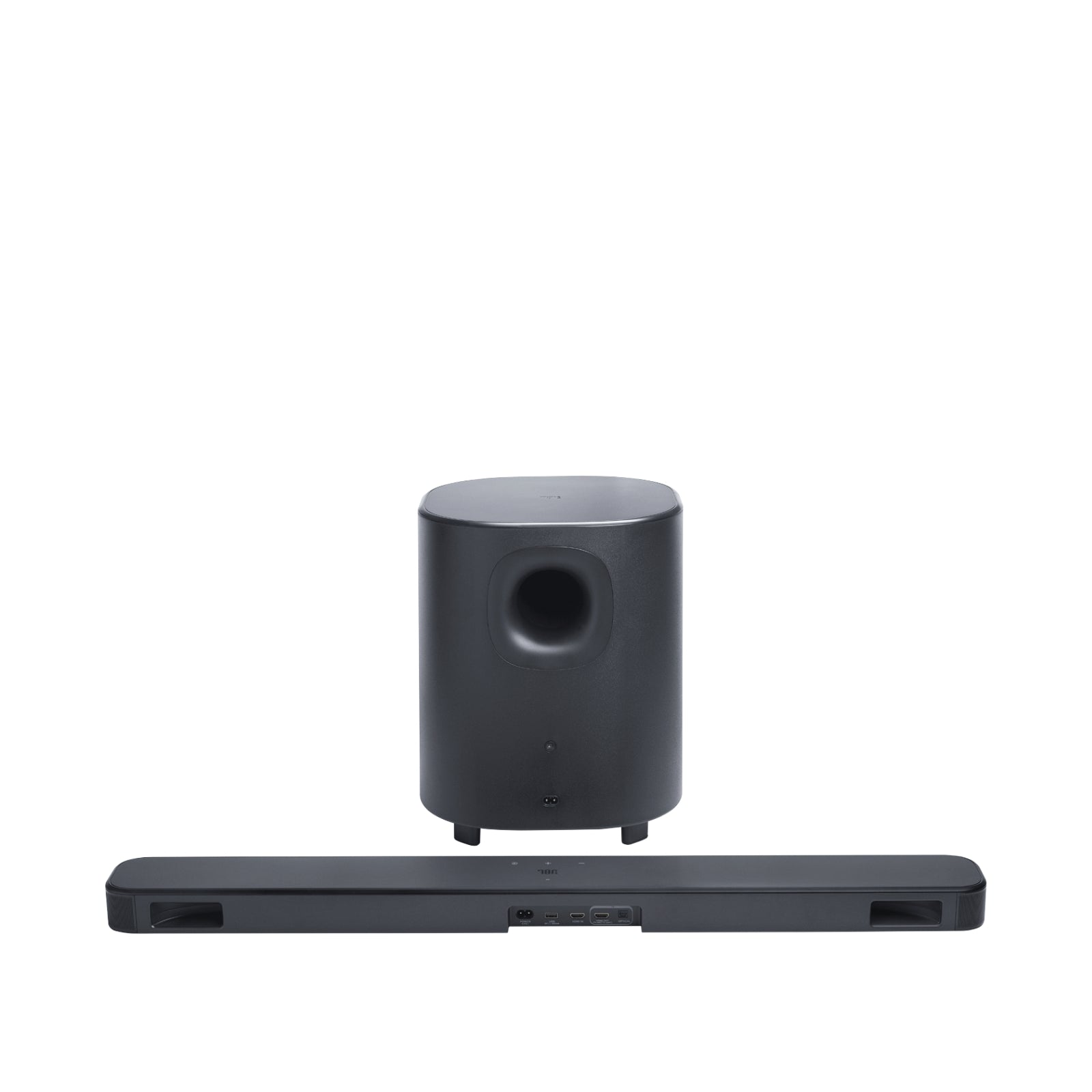

• Subwoofer transducer: 10” (260mm)

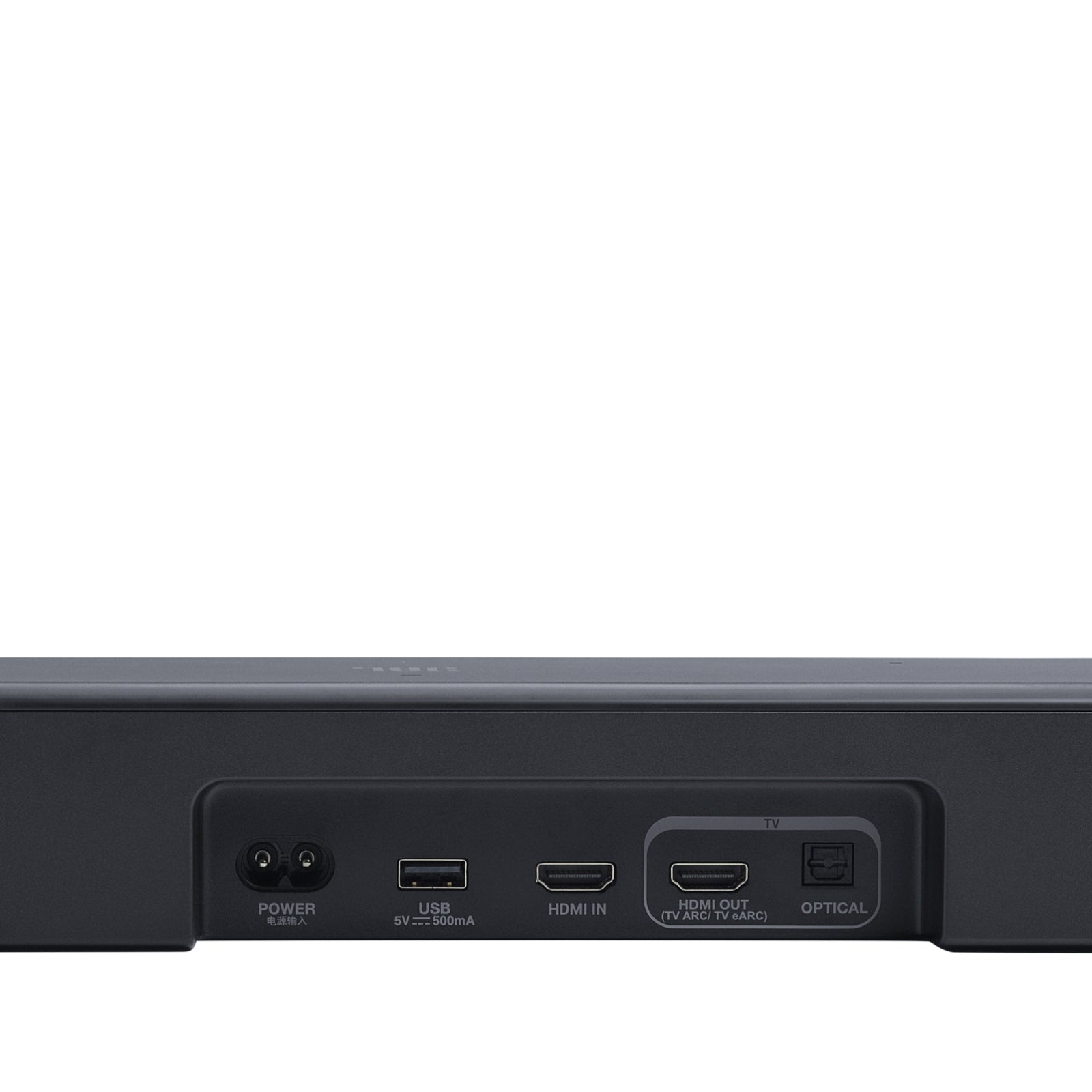

HDMI Specification

• HDMI video input: 1
• HDMI video output (with Enhanced Audio Return Channel, eARC): 1
• HDMI HDCP version: 2.3
• HDR pass through: HDR10+, Dolby Vision

Audio Specification

• Frequency response: 40Hz - 20kHz (-6dB)
• Audio inputs: Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Wireless specification

• Bluetooth version: v5.3
• Bluetooth profile: A2DP v1.3, AVRCP v1.5
• Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
• Bluetooth transmitter power: <15 dBm (EIRP)
• Bluetooth transmitter power: <15 dBm (EIRP)
• Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
• 2.4G Wi-Fi transmitter frequency range: 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
• 2.4G Wi-Fi transmitter power: < 20 dBm (EIRP)
• 5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: 5.15 - 5.25GHz <23dBm,
• 5.25 - 5.35GHz & 5.470 - 5.725GHz <20dBm, 5.725 - 5.825GHz <14dBm (EIRP)
• 2.4G wireless transmitter frequency range: 2406 - 2474MHz
• 2.4G wireless transmitter power: <10dBm (EIRP)




Dimensions

• Main soundbar dimensions (W x H x D): 940 x 50.5 x 104 mm / 37” x 2.0” x 4.1”
• Subwoofer dimensions (W x H x D): 325 mm x 400 mm x 325 mm / 12.8” x 15.7” x 12.8”
• Soundbar weight: 2.9kg / 6.5lbs
• Subwoofer weight: 8.1 kg / 17.8 lbs
• Packaging dimensions (W x H x D): 1020 x 395 x 490 mm / 40.2” x 15.6” x 19.3”
• Packaging Weight: 18.0kg / 39.7lbs (EMEA/UK/AU/NZ) 15.9kg / 34.9lbs (Others)





* RMS @THD 1%: 375W

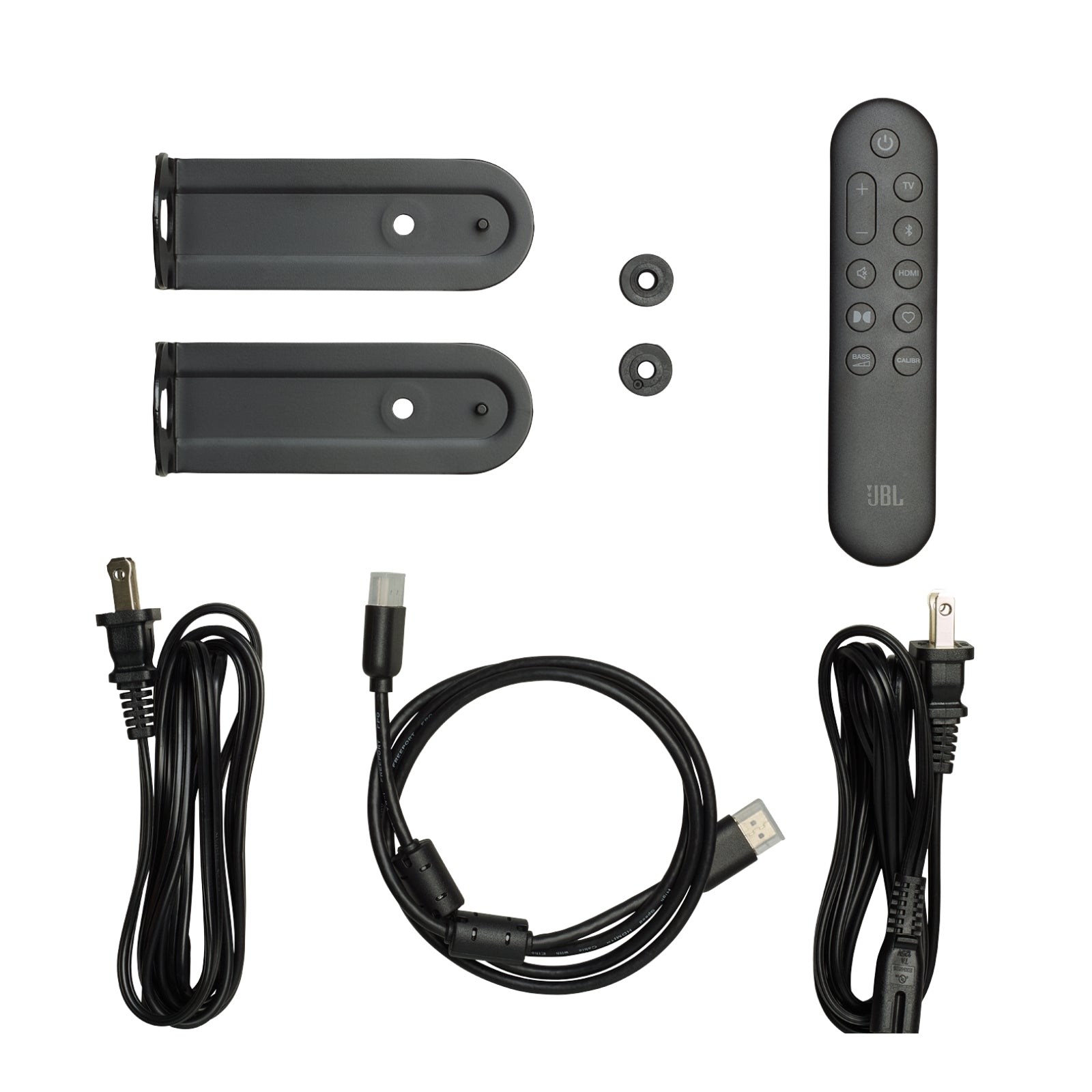

• 1x Main soundbar
• 1x Wireless subwoofer
• Remote control with 2 x batteries
• Power cords (up to 6pcs depending on region SKUs)
• 1 x HDMI cable
• 2 x L-shape wall-mount bracket (main bar)
• Quick start guide
• Safety instruction and Warranty card
• Wall mount template
